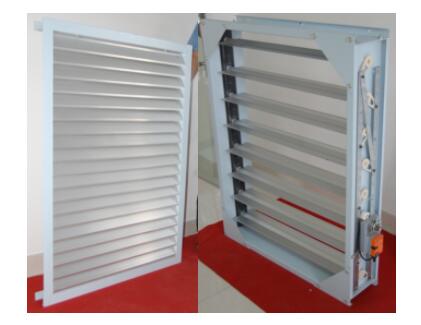

1、總述

　　LF型風量調節窗是用來調節和控制空調系統中新風、回風、排風量。風量調節窗葉片采用優質鋁合金型材，轉動采用牽桿式。具有結構簡單、堅固穩定、調節靈活、漏風量小和線性調節性能好、氣流通暢、葉片光滑、耐酸、耐腐等優點。風量調節窗側面安裝手動調節手柄，也可安裝電動或氣動調節閥。葉片轉動為順開形。

　　LF型固定百葉窗通常安裝在空調室的新風進口端或排風出口端的墻壁上，可有效地防止室外雨、雪、等雜物進入空調室。具有重量輕、阻力小、安裝方便等優點。葉片采用優質鋁合金型材制成，具有外形美觀、阻力低、堅固耐用等優點。

　　安裝時，需在墻上預留安裝孔，預留孔尺寸為B×H。風量調節窗直接靠在墻面上，四周用膨脹螺栓固定。固定百葉窗需嵌入安裝孔，邊框覆在墻面上，再用膨脹螺栓將之固定。

LF model adjusting window is designed to control capacity of new air, return air and exhaust air in air conditioning system. Blade of adjusting window is made of high quality aluminum alloy material. And its rotation is realized by draw lever system. The adjusting window is featured by simple structure, stable construction, flexible in adjustment, low air leakage, smooth air flow, glossy blade, acid and corrosion proof etc. Manual adjusting hand shank is installed at the side of the window, which can be replaced by electricity or air-powered maneuvering valve. Blade rotating direction is clockwise.

LF model louver is usually installed at the new air inlet or on the wall of exhaust air outlet of the air conditioning system, to avoid the effects of outdoor impurities such as rain, snowflakes. LF model louver is featured by light weight, low resistance, and easy installation etc. Blade of louver is made of high quality aluminum alloy material, which has such advantages as artistic outline, low resistance and good durability.

For installation, pre-opened holes on the wall are needed. Size of pre-opened hole is B×H. Air capacity adjusting window is installed directly on the wall, fixed by plug bolt all around; while louver should be inserted into mounting hole firstly, leaving frame on the wall, then fixed by plug bolt all around.

2、調節窗型號 Adjusting window Type：LFT-B×H

百葉窗型號：Louver type: LFB-B×H

常用規格 Standard Specification：

單扇調節窗、百葉窗留孔尺寸即本尺寸，Single-fan adjustable window, louver dimensions are indicated beside.

調節窗可雙拼組合，左右兩側安裝調節手柄，手柄向上，葉片開，手柄向下，葉片關。

百葉窗雙拼連接中間加50×50方管。

Adjusting window can be two-sorts combination, with adjusting handles at right and left sides, blades open when handles up, close when handles down.

Two-sorts Louvers can be connected by 50×50 square tubes in middle.

3、主要配置：Main configuration:

調節窗：邊框：2mm鍍鋅板折邊

葉片：鋁合金葉片

連接件：ABS塑料連接件

調節：手動/電動調節閥

Adjusting Windows: Frame: 2mm

Galvanizing edge-folding sheets

百葉窗：邊框：鋁合金，角碼連接

葉片：鋁合金葉片

Louver: Aluminum frames, bracket

Connection, aluminum blades;

4、技術參數：Specification

　　調節窗最大透風量 Max air blast capacity of Adjusting windows:15000m3/h.m2;

　　百葉窗最大透風量 Max air blast capacity of Louver: 7000m3/h.m2

5、安裝要求 Set-up requirement:

　　將調節窗貼緊窗洞，四周邊框用膨脹螺栓固定，窗框與墻體間隙用密封膠或泡沫填充劑填充。

　　將百葉窗嵌入預留窗洞，用膨脹螺栓固定，外框與墻體間隙用密封膠或泡沫填充劑填充。

Fit adjusting window or louver to window hole, fix four corner frames with plug bolts, fill the gaps between framework and wall with sealant and foam filler.

6、檢驗標準：Inspection Criteria

調節窗：

　　邊框折邊平直，無毛刺，角碼連接牢固，不變形，對角線誤差≤3mm;葉片切割平整，兩端倒角，去毛刺，葉片長度統一，葉片裝配方向一致，手柄開關方向一致;塑料連接件裝配緊密，無松動。

　　葉片開啟、關閉流暢，兩端無嚴重刮擦，無刺耳聲音。關閉時葉片搭接處接觸一致，無縫隙。

　　安裝后窗框與墻體貼緊，無明顯縫隙。

Adjusting window:

Edge-folding sheets of framework should be straight even, no burrs, brackets connection solid, no contortion, diagonal error less than 3mm, smooth cutting edge of blades, chamfer at both ends, deburring, identical blade length, the same assembly direction of blades and handle switches, solid connection of plastic connectors, no loose.

After assembling, frameworks should fit snugly with wall, without obvious gap.

百葉窗：

　　邊框焊接平整，無毛刺，不變形，對角線誤差≤3mm;葉片切割平整，兩端倒角，去毛刺，葉片長度統一，葉片裝配方向一致;葉片裝配緊密，平行，無松動;窗框安裝垂直誤差≤5mm，水平誤差≤2mm;

　　安裝時窗框與墻體貼緊，無明顯縫隙。窗框與外墻間隙無積水，無滲漏。

Louver:

Smooth welding of framework, no burrs, no contortion, diagonal error less than 3mm, smooth cutting edge of blades, chamfer at both ends, deburring, identical blade length, the same assembly direction of blades and handle switches, solid connection of plastic connectors, no loose. Vertical error of assembly should be less than 5mm, vertical less than 2mm.

After assembling, frameworks should fit snugly with wall, without obvious gap.

7、外形簡圖及土建條件圖 Outer figure and construction requirement:

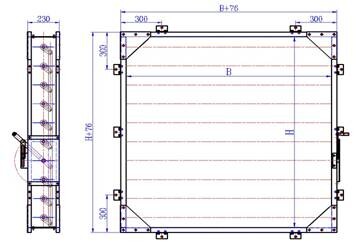

調節窗外形圖

Outer figure of Adjusting window

調節窗四邊用固定件固定于墻體。當調節窗高度H≤1836時左右兩側各固定2處；當高度H＞1836時，左右各固定3處。當調節窗寬度B≤1200時，上下兩邊各固定1出，當寬度B＞1200時，上下兩邊各固定2處。

  All corners of adjusting window should be fixed to the wall. When height of window less than 1836mm,left and right sides should be fixed in two positions. When height of window is above 1836mm, left and right sides should be fixed in three positions. When breadth less than 1200mm, upper and lower frames should be fixed at one position each, when breadth is above 1200mm, upper and lower frames should be fixed in 2 positions each.

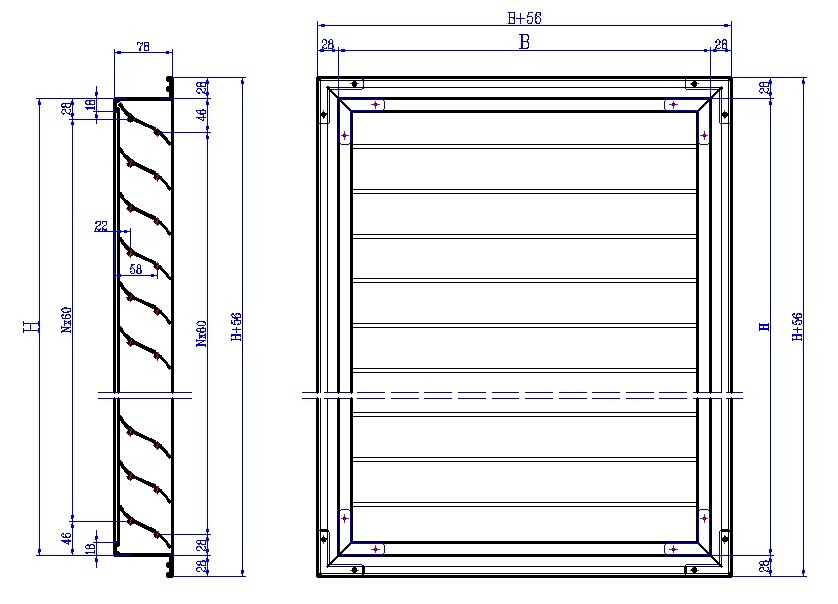

百葉窗外形圖 Louver outer figure

調節窗/百葉窗土建預留窗洞及安裝簡圖

Adjusting window/Louver construction pre-opened hole, and assembly sketch
